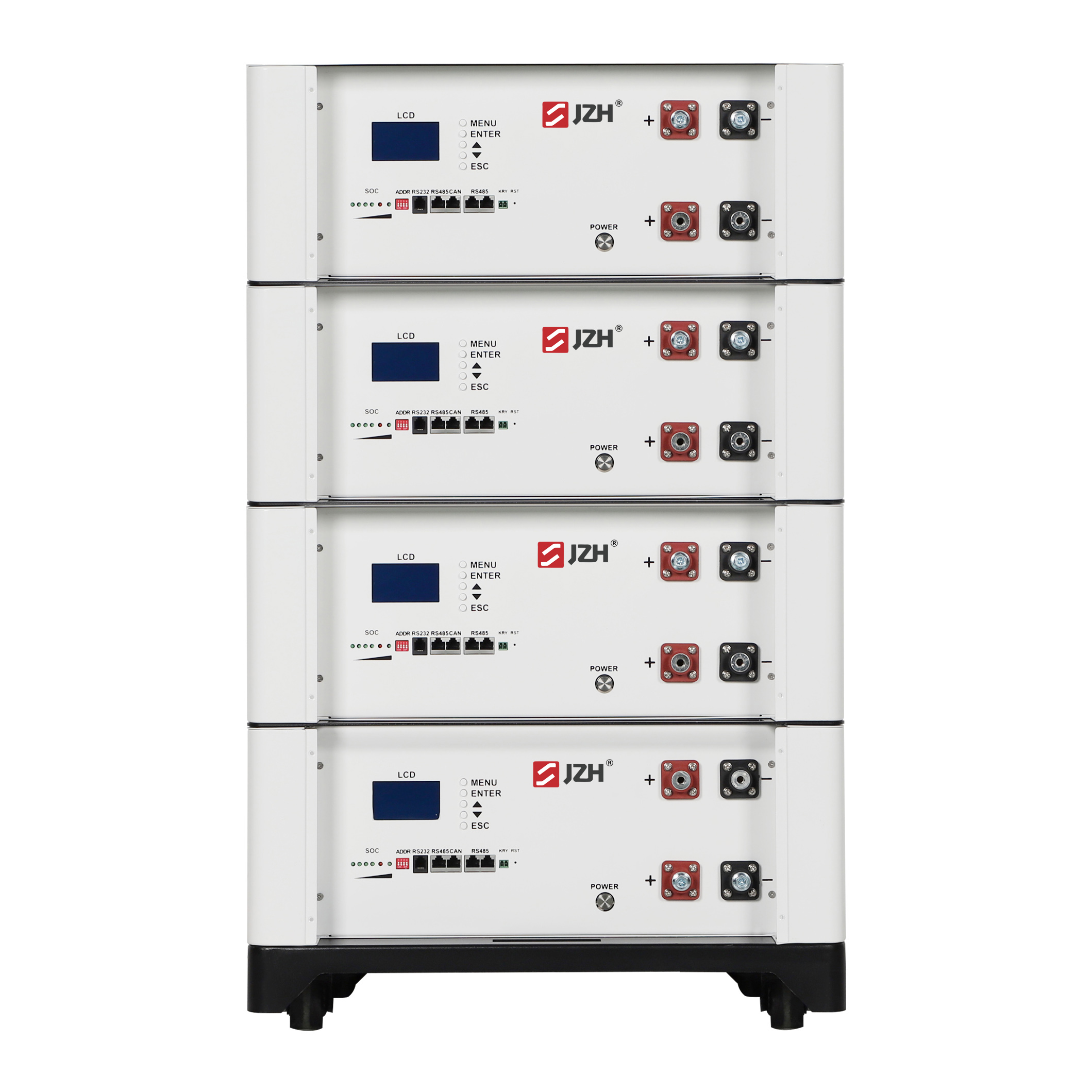

Kit ɗin ESS (tsarin ajiya na makamashi) babban aiki ne na kuzari na gida, wanda aka haɓaka shi da masana'antu musamman kuma mai inganci don maganin kuzari na gida.
JZH ESS Adadin Adanar da makamashi makamashi ya yi nasara a yawancin fa'idodin baturin, batir mai inganci na BMS, HELLICET INTERTER, GIDID Photovoltanec, gina - a cikin mai sarrafa mppt. Dogon rayuwa fiye da 6000 da'ira, babban aikin aminci. Tsarin Kayayyakin Makamashin JZI na JZI ne kuma ingantaccen ƙarfin kuzari don ɗaukar hoto - Grid Power Tsarin Tsarin Gidaje, da Tsarin Ma'ajin Fasaha na Ma'aikata na masana'antu.
Hasken wuta na rana
1) Mai sarrafa kuzari na makamashi akan / kashe Grid tare da tsarkakakken igiyar ruwa.
2) Domin baƙon abu ne: USB / Rs232 / Rs485 / WiFi / 4g / Bluetooth.
3) RMS (tsarin sa ido na saka idanu na saka ido) akwai don yin aiki ta hanyar wayar salula.
4) overload / kan zazzabi / gajeriyar kariya.
5) Saitin LCD na hankali na LCD (yanayin aiki / cajin halin yanzu / cajin wutar lantarki ...).
Hasken ranaBaturin Lititum
1) sama da 6000 rayuwa da'ira.
2) An tsara wutar lantarki da ƙarfin.
3) Zabi na yanar gizo: USB / Rs232 / Rs485 / WiFi / 4g / Bluetooth.
4) Shirin Koyarwar BMS na hankali don kiyaye baturan ajiya na makamashi na rayuwa cikin aminci da babban aiki.
5) Cikakken kariya: overload / gajere / Tsara Tsara Kariyar / Sama da zazzabi ...
Babban inganci ES -Hasken ranaHanya
1) Kariyar wutar lantarki.
2) Kariyar Kariyar.
3) Sama da kariyar zafin jiki.
4) Kariya daidaitawa.
5) Sama da kariyar fitarwa.
6) Short da'irar da'ira.
7) Kariyar ruwa mai zurfi.
Muhawara
|
Hanya |
Gida Ess 5kWh |
Gida ESS 10KWH |
Gida ESS 15KWH |
Gida ESS 20KWH |
|
Iya aiki |
5.12kwh / 5kw |
10.24KWH / 5KW |
15.36KWH / 8KW |
20.48kwh / 10kw |
|
Daidaitaccen fitarwa na yanzu |
50A |
50A |
50A |
50A |
|
Max.discharge yanzu |
100A |
200a |
100A |
100A |
|
Matsayi mai ƙarfin lantarki |
43.2 - 57.6VDC |
43.2 - 57.6VDC |
43.2 - 57.6VDC |
43.2 - 57.6VDC |
|
Daidaitaccen ƙarfin lantarki |
51.2VDC |
51.2VDC |
51.2VDC |
51.2VDC |
|
Max.charging na yanzu |
50A |
50A |
50A |
50A |
|
Max.charging wutan |
57.6v |
57.6v |
57.6v |
57.6v |
|
Rated Pv Input |
360VDC |
360VDC |
360VDC |
360VDC |
|
Mpp trobing kewayon wutar lantarki |
60 - 430vdc |
60 - 430vdc |
60 - 430vdc |
60 - 430vdc |
|
Max shigarwar Voltage (VOC) |
260v - 300v |
260v - 300v |
260v - 300v |
260v - 300v |
|
Max Inpet Power |
6Kw |
6Kw |
9kW |
12KW |
|
Dc Inputage kewayon lantarki |
60 - 430vdc |
60 - 430vdc |
60 - 430vdc |
60 - 430vdc |
|
Rated Ac Post Inputwar wutar lantarki |
220vac / 230vac / 240vac |
|||
|
Ac Grid Inptage |
170 BAR - HOM 280 (UPS Yanayin) / 120 BARE ~ 280 BOM (Yanayin Inverter) |
|||
|
Grid Inputitar |
45hz ~ 55hz (50Hz); 55hz ~ 65hz (60hz) |
|||
|
Inverter fitarwa ingancin |
94% (max) |
|||
|
Inverter Oututumar |
220vac ± 2% / 230vac ± 2% / 240vac + 2% (Yanayin Inverter) |
|||
|
Inverter fitarwa mita |
50Hz ± 0.5 ko 60hz ± 0.5 (Yanayin Inverter) |
|||
|
Inverter Fitar Samfurin |
Tsarkakakken kalaman |
|||
|
Grid Outputey ingancin |
> 99% |
|||
|
Max mains caji na yanzu |
60A |
|||
|
Cajin pv pv |
100A |
|||
|
Max caji na yanzu (grid + pv) |
100A |
|||
|
Max Diskarging na yanzu |
100A |
|||
|
Yanayin zaɓi |
Grid fifikon / PV fifiko / fifiko |
|||
|
Sadarwa |
Zabi: RS485 / Rs232 / Can Wfi / 4G / Bluetooth |
|||
|
* Voltage, iko, girman / Ingantaccen sabis, ana iya samar da sabis na OEEM / ODM a cewar bukatun abokin ciniki |
||||
